户用电池
T-BAT-SYS-HV-5.8
-

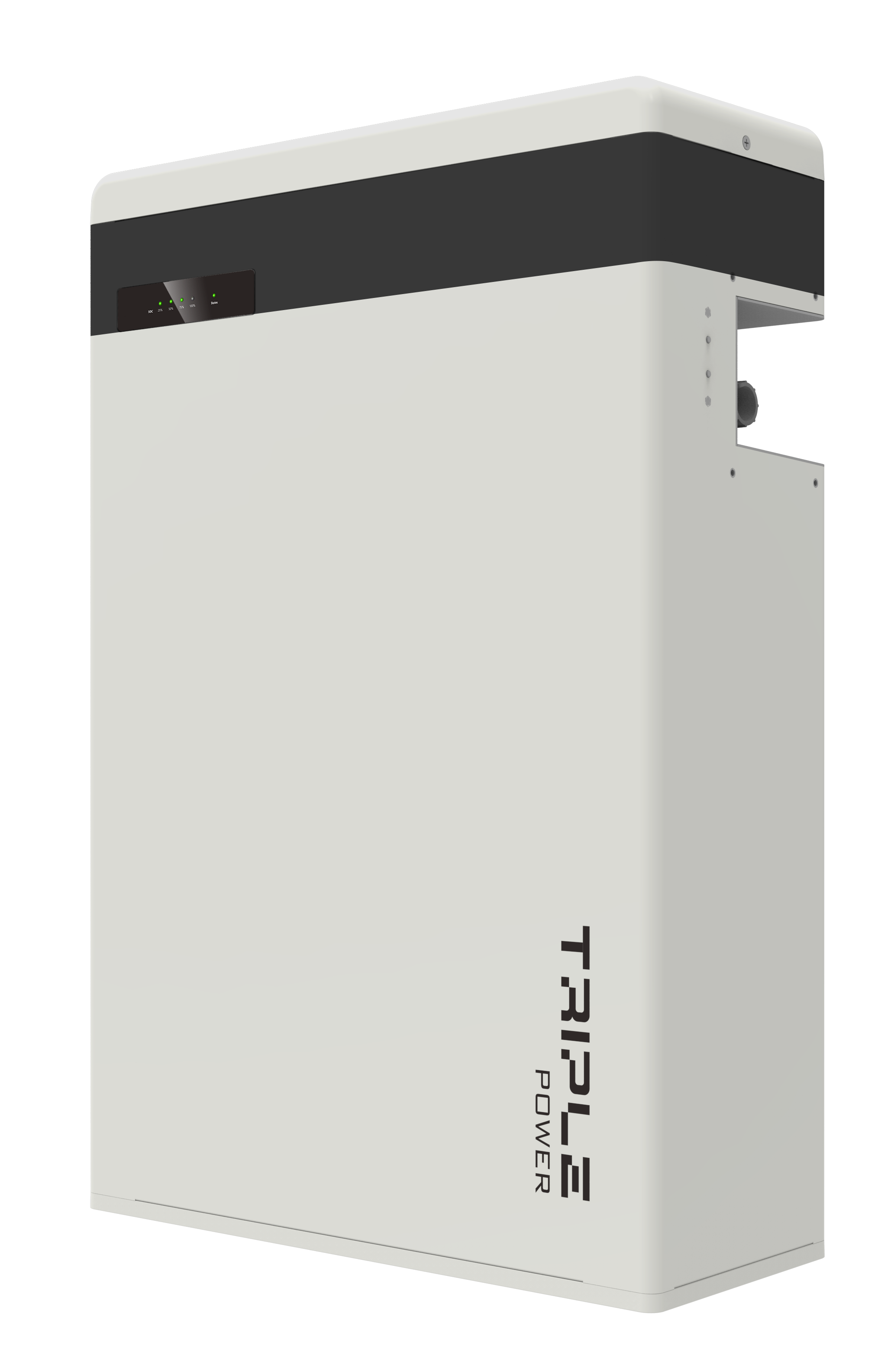

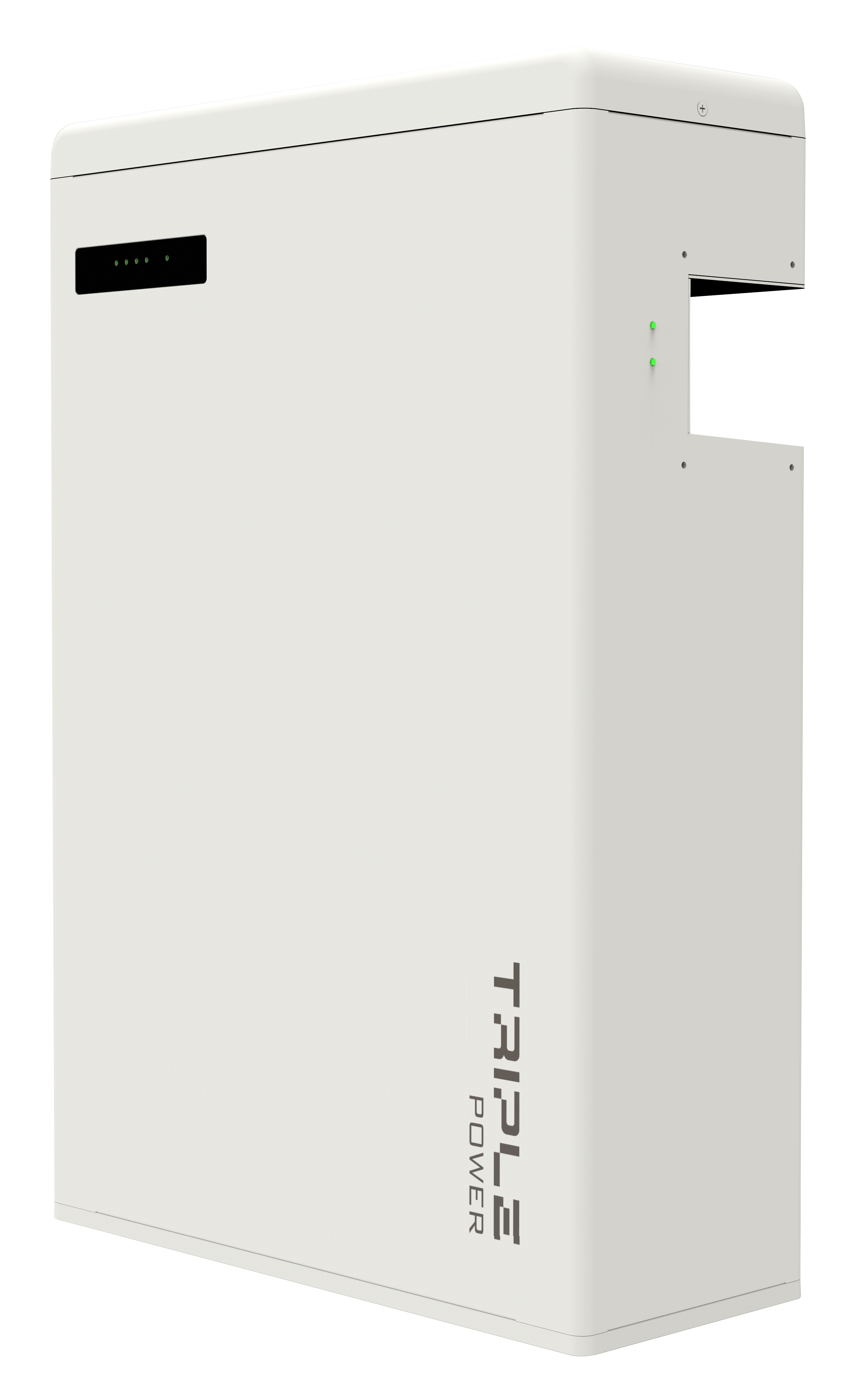

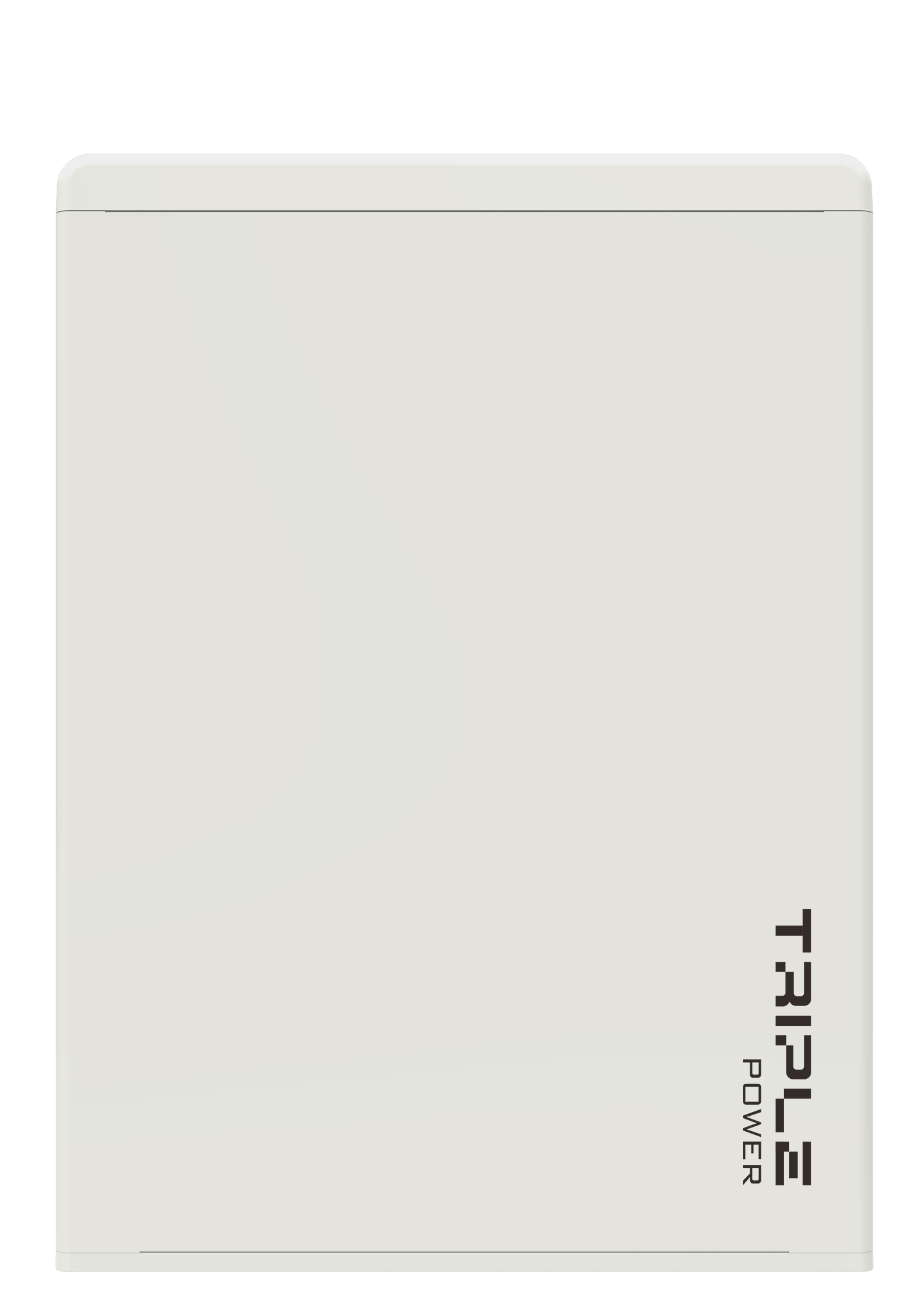

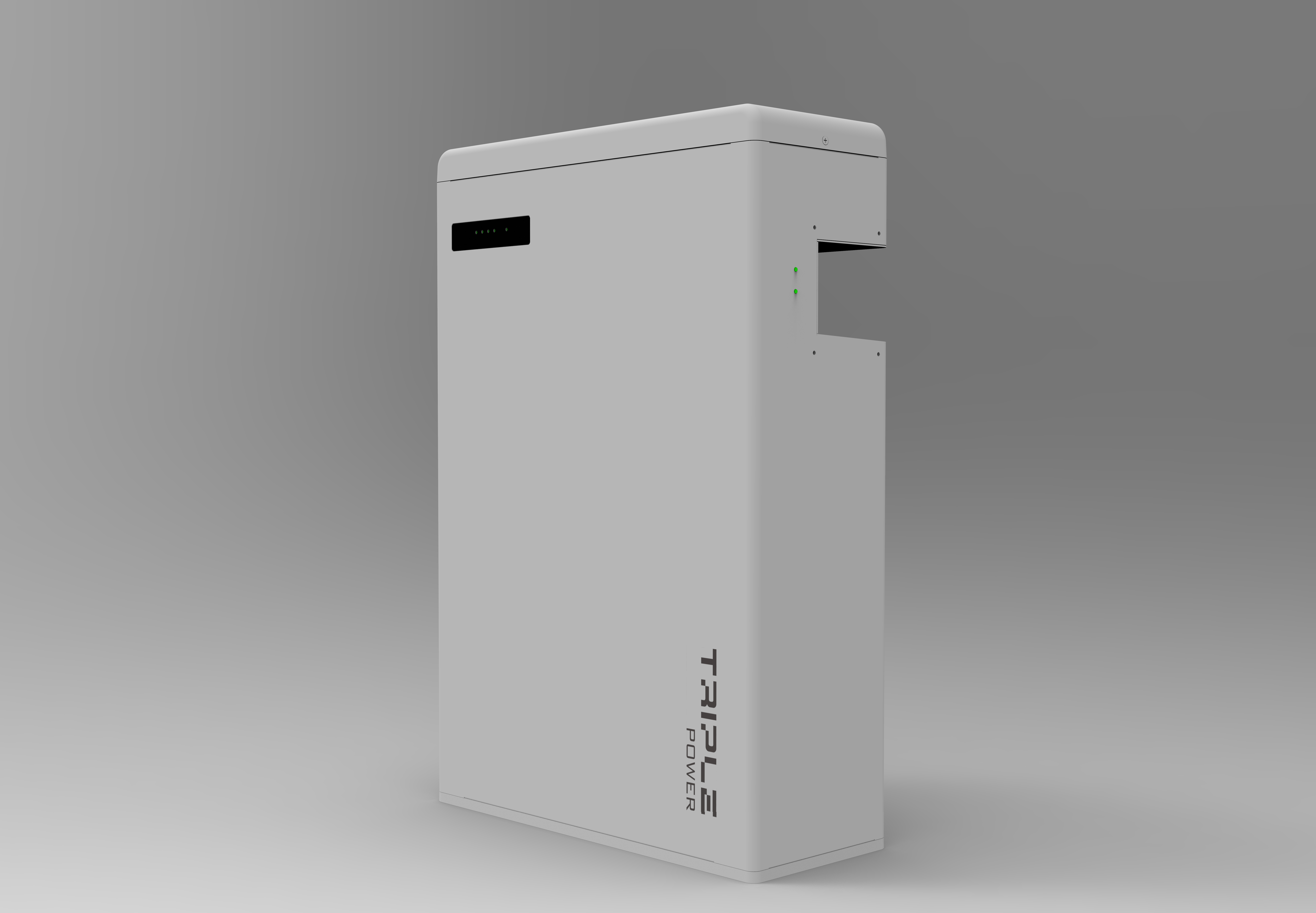

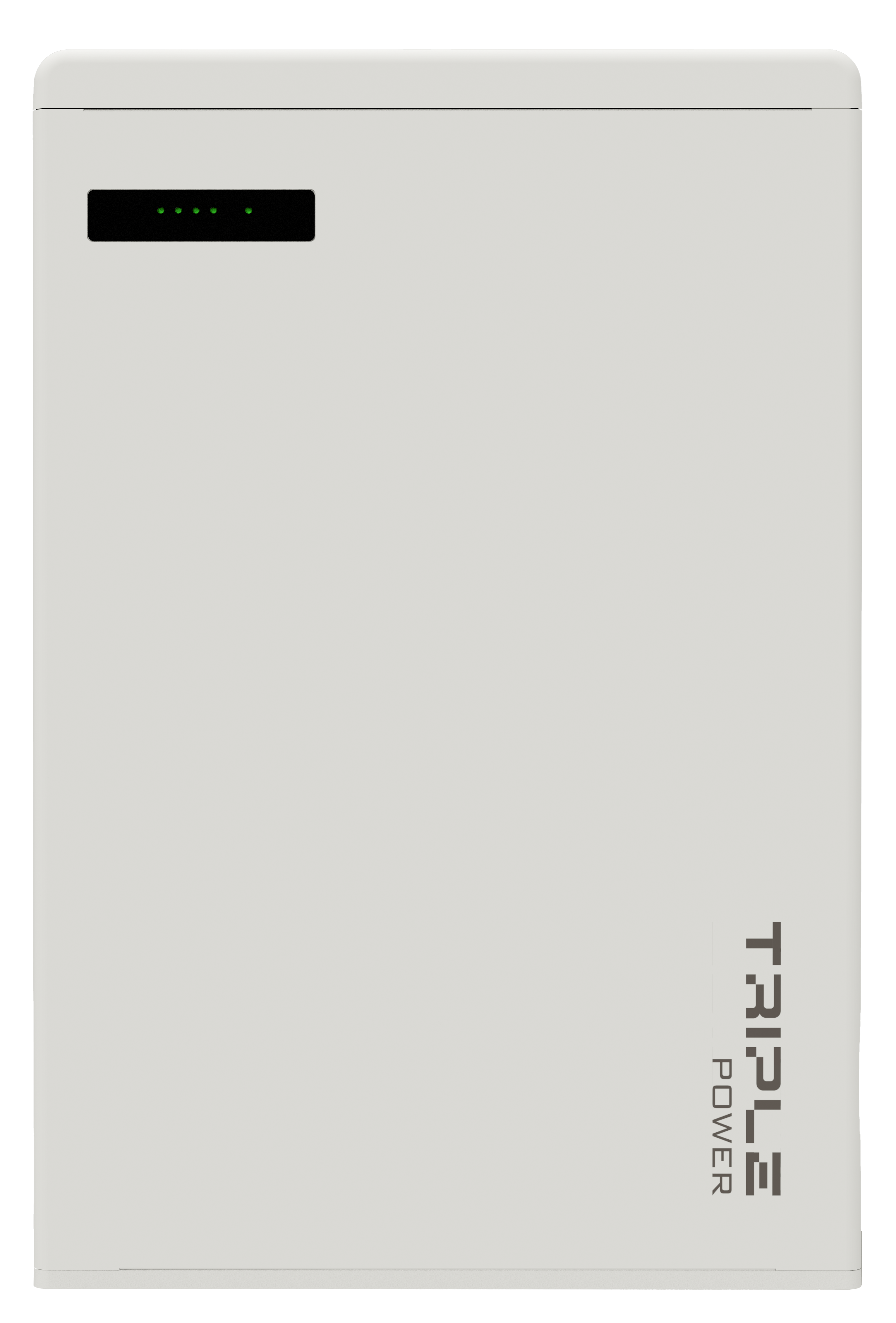

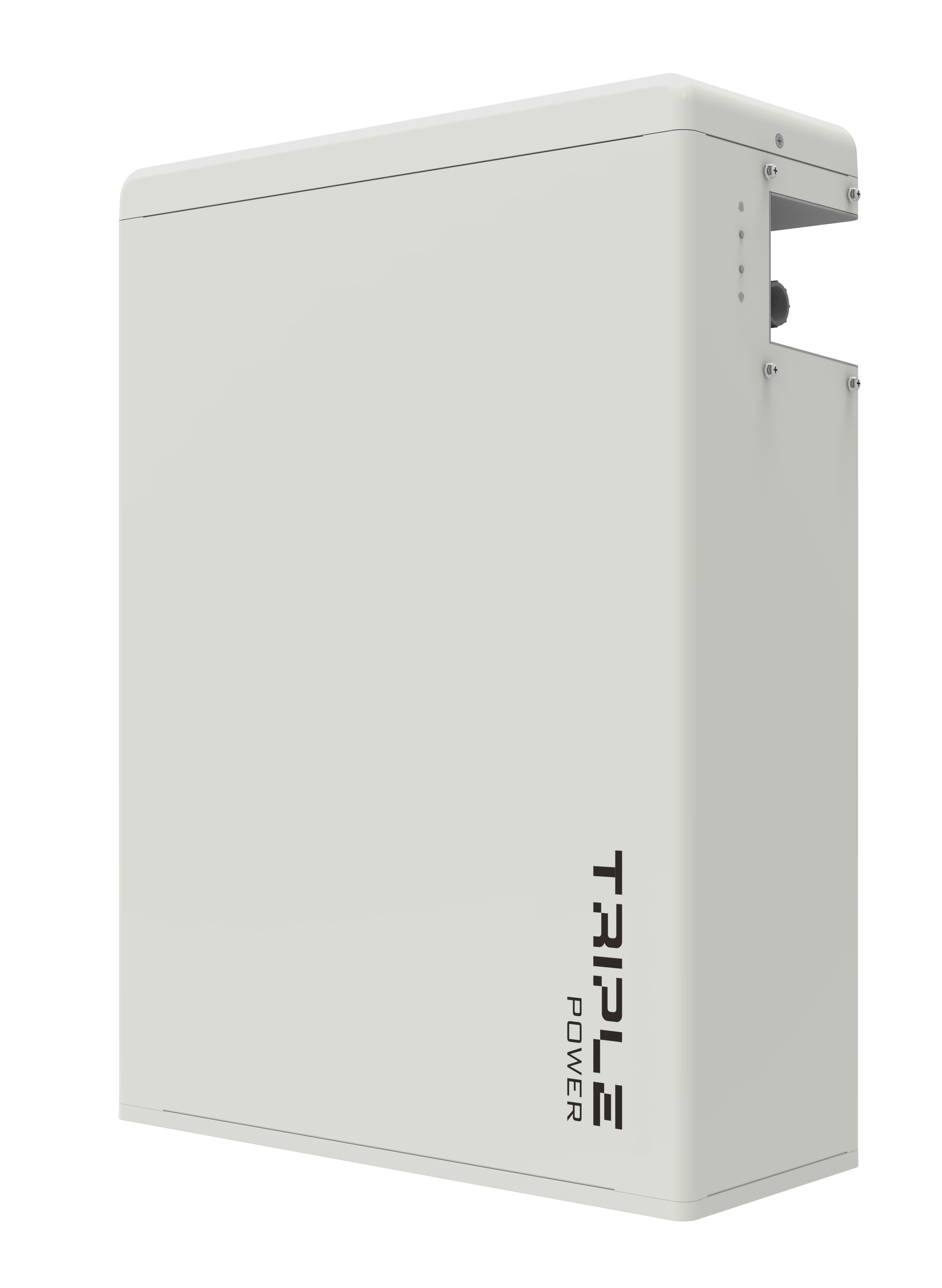

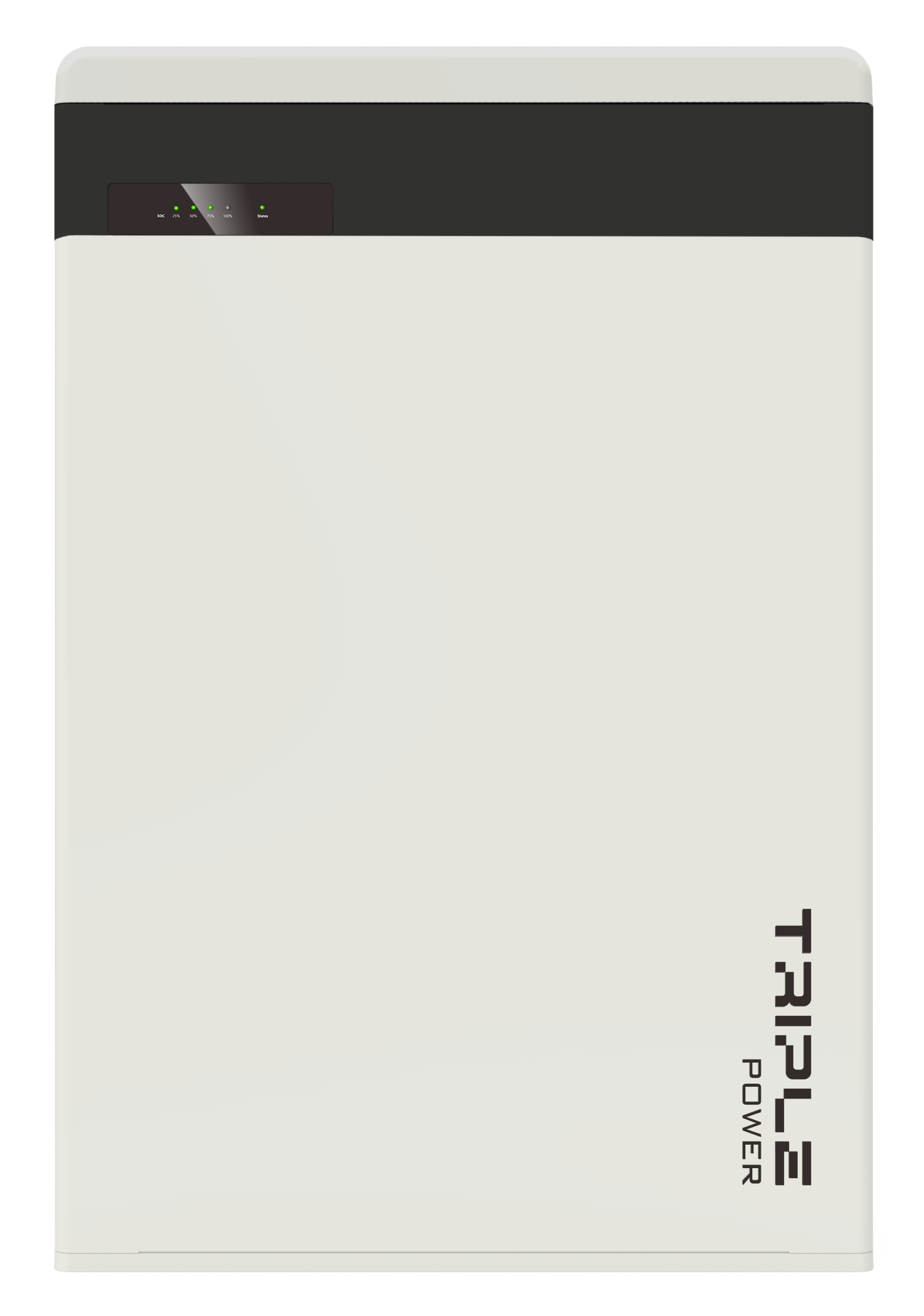

T-BAT H 5.8 (Master) T-BAT H 5.8 V2 (Master) HV11550 / HV11550 V2 (Slave)
T-BAT-SYS-HV-5.8支持地面与壁挂两种安装方式，适配不同空间需求。紧凑型设计确保快速安装，同时降低系统自耗电，是理想的储能解决方案。
-
观看视频
高性能表现
90%放电深度（DOD）
循环次数＞6000次
稳定可靠
磷酸铁锂电芯与高性能处理器
IP65防护等级
不含重金属或有毒物质
智能管理
远程故障诊断、升级与维护
灵活适配
支持地面安装与壁挂安装
Product Parameters
-
T-BAT H 5.8, T-BAT H 5.8 V2-
GENERAL
Nominal voltage 115.2 V Total capacity 5.8 kWh Standard power 2.8 kW Dimensions (W x H x D) 474 × 193 × 708 mm
Weigh 72.2 kg
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 11.5, T-BAT H 11.5 V2
-
GENERAL
Nominal voltage 230.4 V Total capacity 11.5 kWh Standard power 5.7 kW Dimensions (W x H x D) 474 × 193 × 708 mm +
474 × 193 × 647 mm
Weigh 72.2 kg + 68.5 kg
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 17.3, T-BAT H 17.3 V2
-
GENERAL
Nominal voltage 345.6 V Total capacity 17.3 kWh Standard power 8.6 kW Dimensions (W x H x D) 474 × 193 × 708 mm +
(474 × 193 × 647 mm) × 2
Weigh 72.2 kg + 68.5 kg × 2
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
-
T-BAT H 23, T-BAT H 23 V2
-
GENERAL
Nominal voltage 460.8 V Total capacity 23.0 kWh Standard power 11.5 kW Dimensions (W x H x D) 474 × 193 × 708 mm +
(474 × 193 × 647 mm) × 3
Weigh 72.2 kg + 68.5 kg × 3
-
BATTERY MODULE
Battery type Li-ion (LFP) Max Charge / Discharge current 35 A -
ENVIRONMENTAL REQUIREMENTS
Ingress protection IP65 Hazardous materials classification Class 9
-
