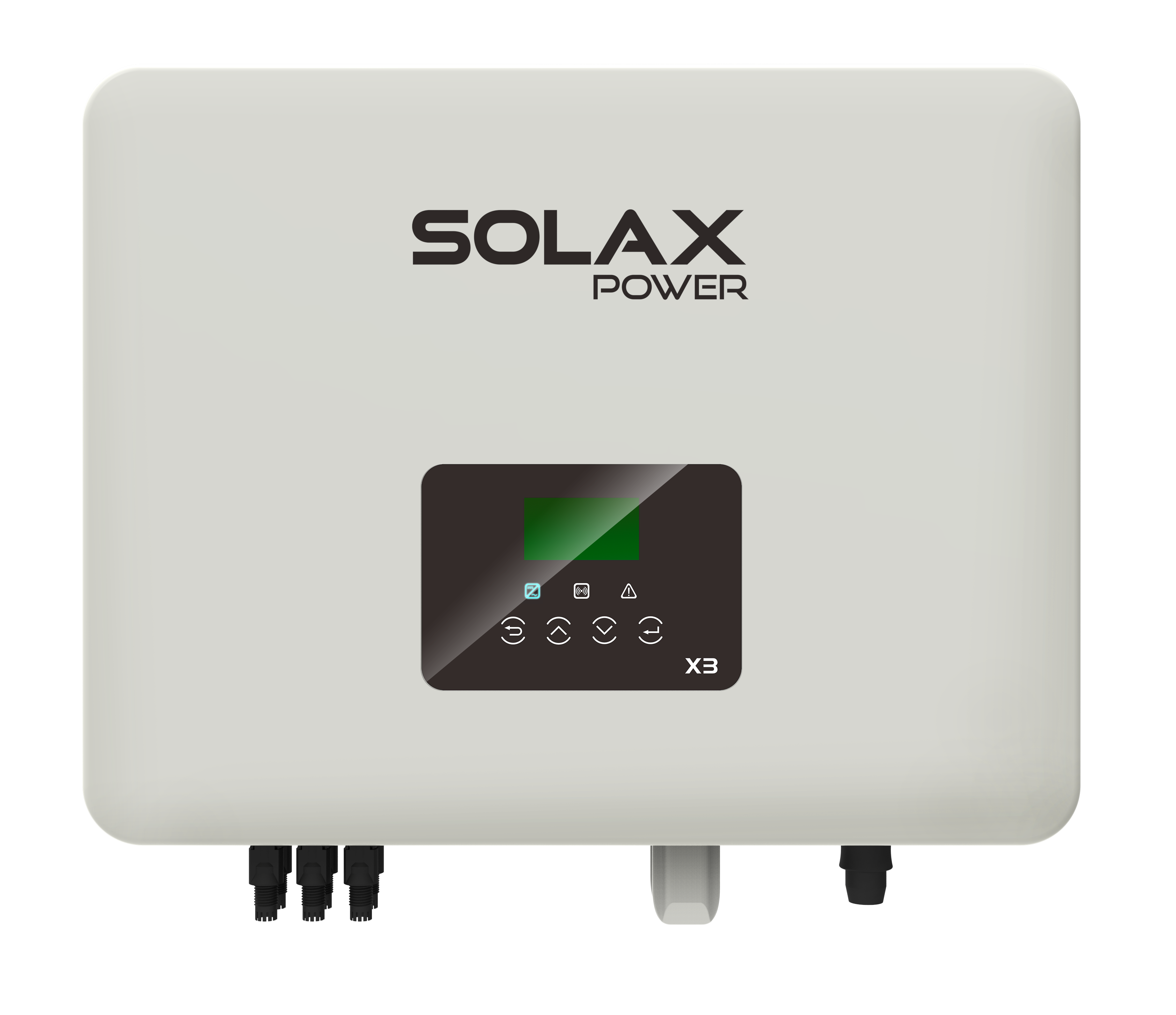

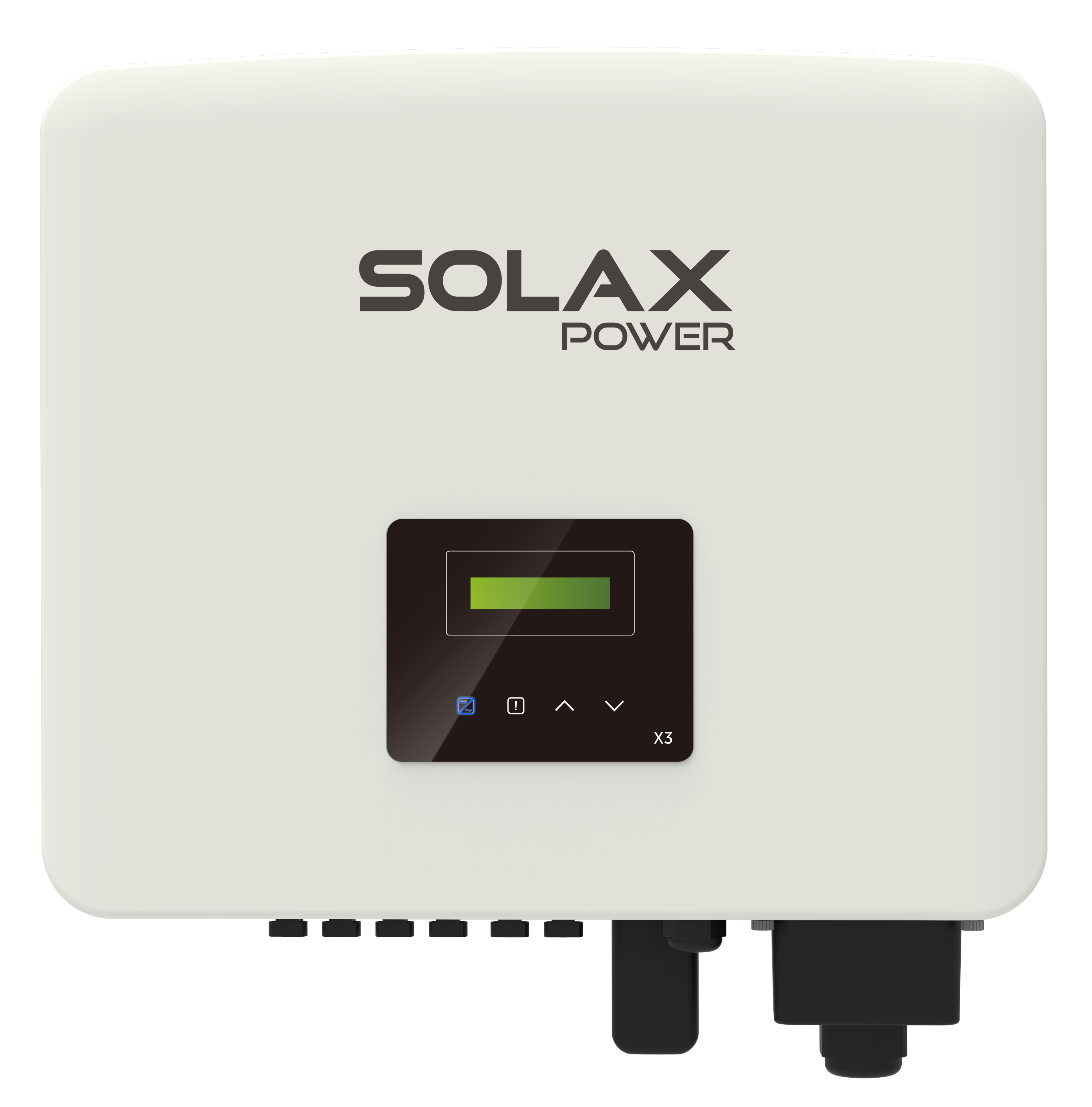

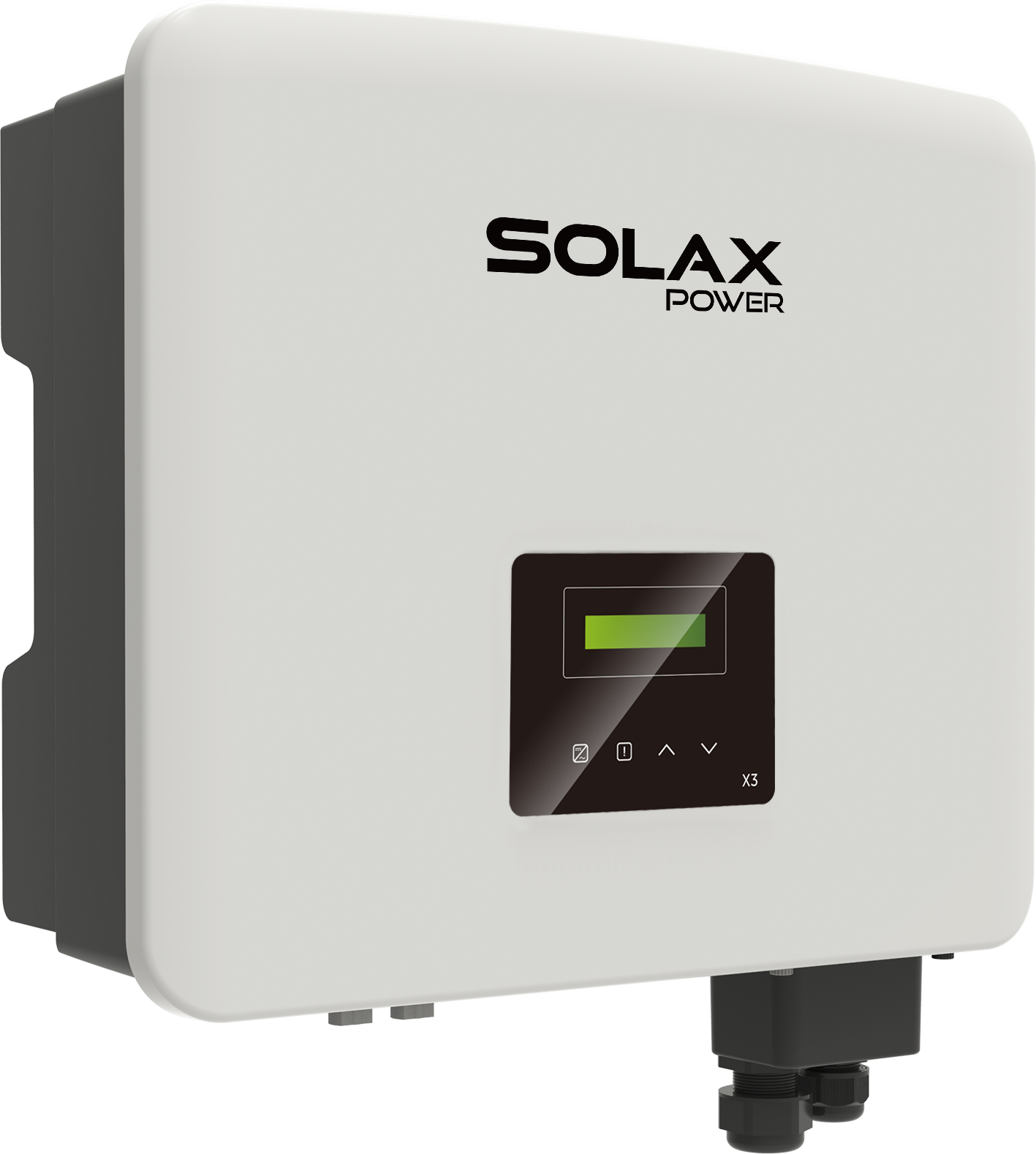

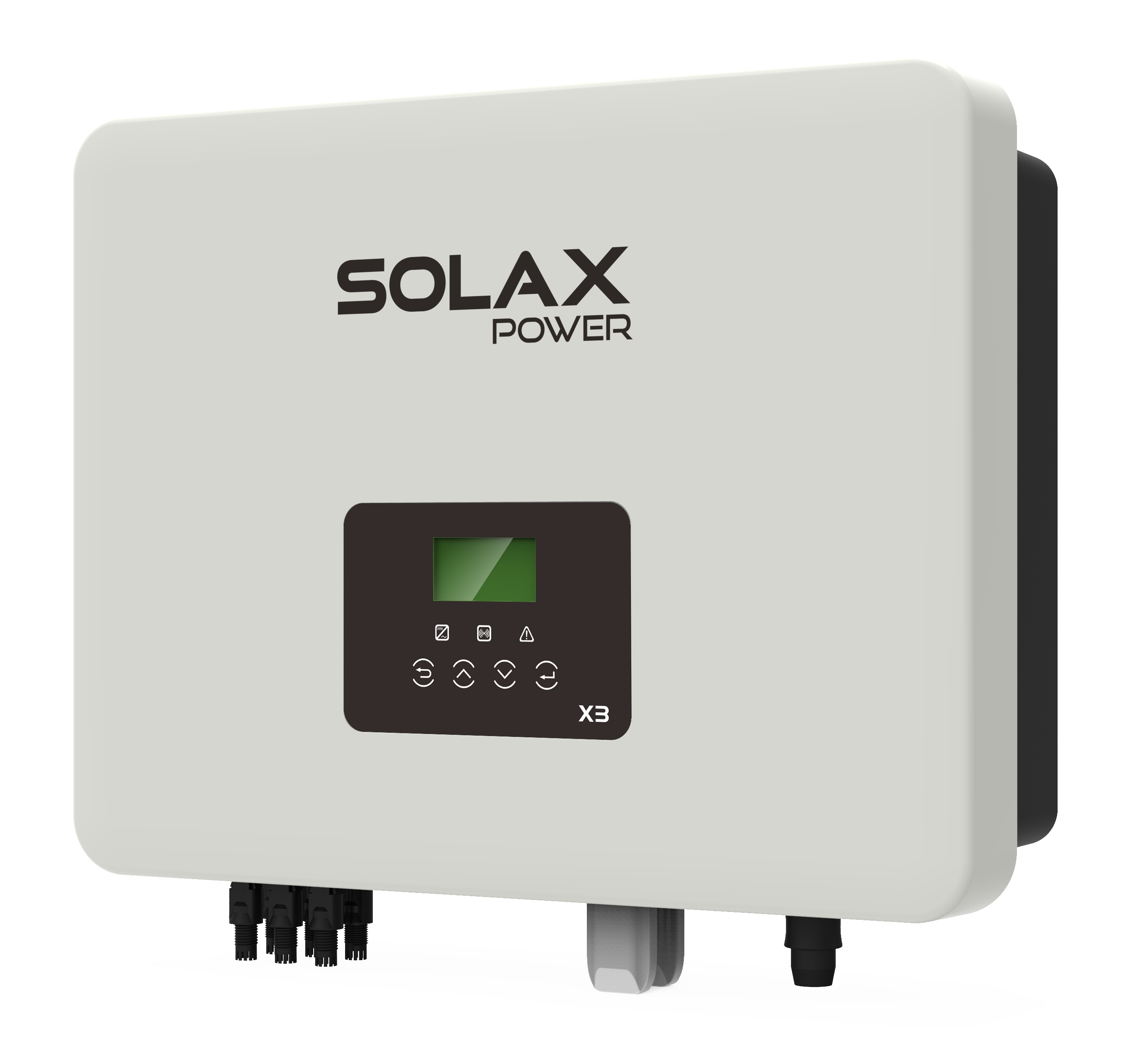

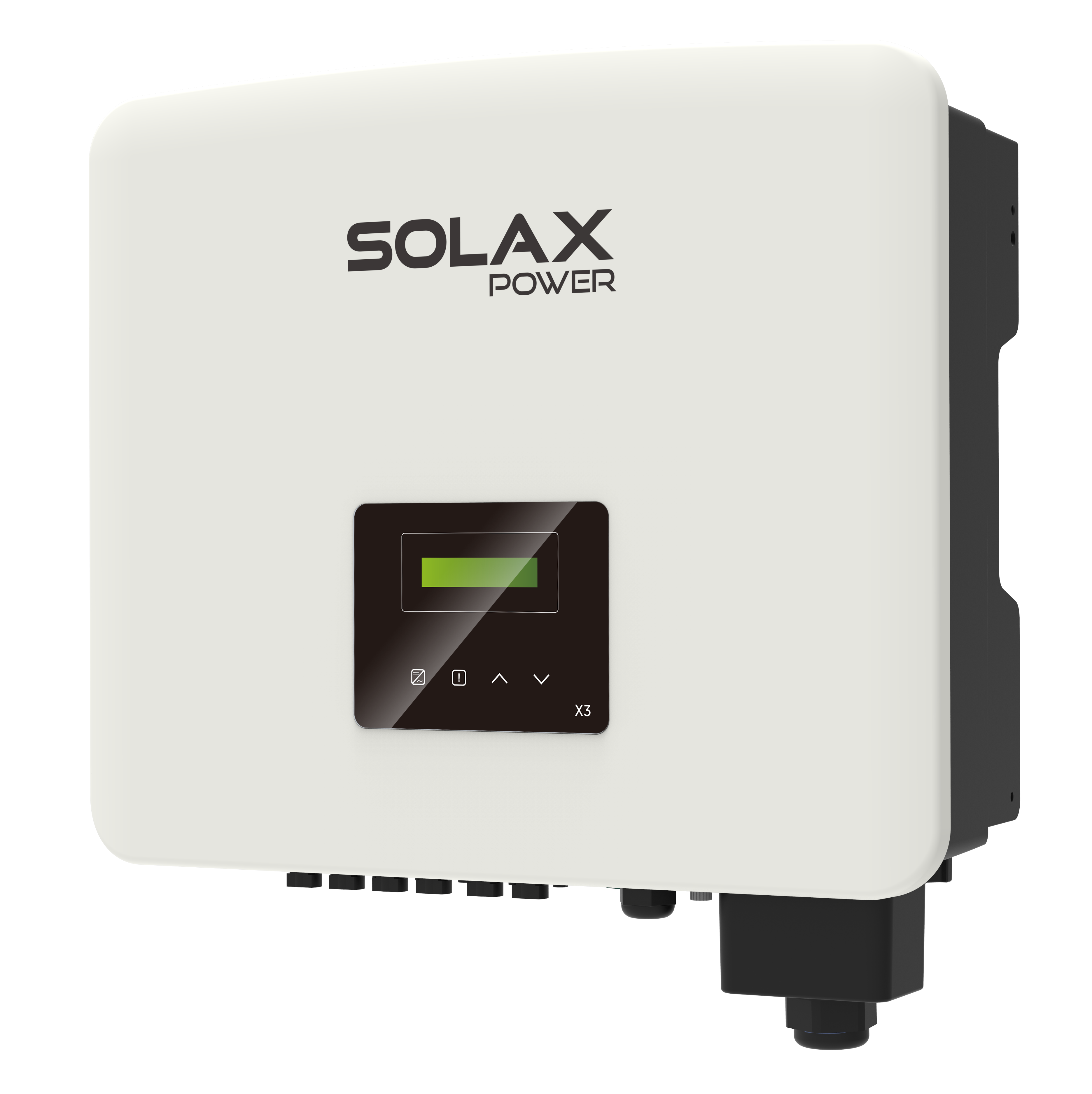

三相逆变器
X3-PRO G2
-
8kW / 10kW / 12kW / 15kW / 17kW / 20kW / 25kW / 30kW
X3-PRO G2逆变器（8kW–30kW）为户用及商业应用提供灵活功率选择。内置输出功率控制与智能负载管理功能，完美适配热泵、电动汽车充电桩等设备。IP66防护等级与高功率密度设计，确保在各种环境下稳定运行。
产品优势
X3-PRO G2 拥有高达98.5%的转换效率，支持150%直流超配及110%交流过载，确保太阳能资源得到高效利用。每路MPPT电流达32A，结合全局MPP扫描技术与宽电压MPPT范围，即使在弱光或复杂光照条件下也能实现发电量最大化。
安全可靠
交直流侧均配备II级浪涌保护装置
可选配AFCI直流拉弧保护
灵活适配
内置输出功率控制功能
超高功率密度设计
智能设计
IP66防护等级
24小时全天候监测（支持WiFi/有线/4G网络）
智能负载管理（适配热泵、智能电动汽车充电桩等设备）
高效运行
转换效率高达98.5%
每路MPPT电流达32A
支持150%直流超配与110%交流过载输出
内置全局MPP扫描功能
低启动电压与超宽MPPT电压范围
Product Parameters
-
X3-PRO-8K-G2-
PV INPUT
Max. recommended PV array power 12.0 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 2/(2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 8kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 24.5 kg
-
-
X3-PRO-10K-G2
-
PV INPUT
Max. recommended PV array power 15.0 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 2/(2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 10kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 24.5 kg
-
-
X3-PRO-12K-G2
-
PV INPUT
Max. recommended PV array power 18.0 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 2/(2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 12kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 24.5 kg
-
-
X3-PRO-15K-G2
-
PV INPUT
Max. recommended PV array power 22.5 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 2/(2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 15kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 26.0 kg
-
-
X3-PRO-17K-G2
-
PV INPUT
Max. recommended PV array power 25.5 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 2/(2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 17kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 26.0 kg
-
-
X3-PRO-20K-G2
-
PV INPUT
Max. recommended PV array power 30.0 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 2/(2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 20kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 26.0 kg
-
-
X3-PRO-25K-G2
-
PV INPUT
Max. recommended PV array power 37.5 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 3/(2/2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 25kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 28.0 kg
-
-
X3-PRO-30K-G2
-
PV INPUT
Max. recommended PV array power 45.0 kWp MPPT voltage range 160 ~ 980 V No. of MPP trackers / strings per MPP tracker 3/(2/2/2) Max. input current per MPPT 32A -
AC OUTPUT
Rated output power 30kW Rated AC voltage 3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V -
GENERAL
Dimensions (W /H / D) 482 × 417 × 186 mm Net Weight 28.0 kg
-
