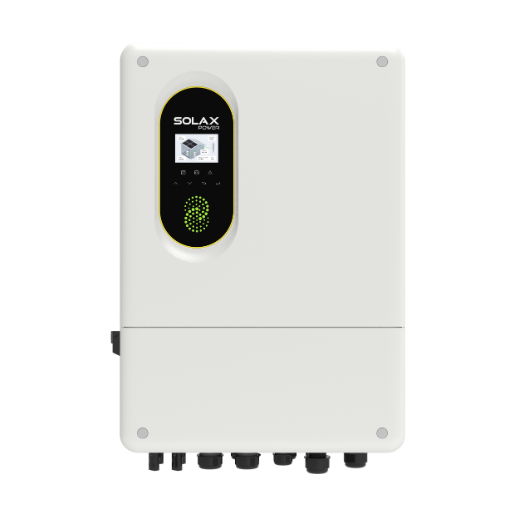

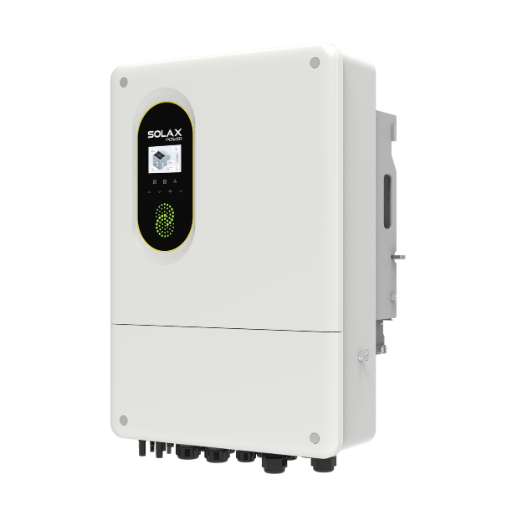

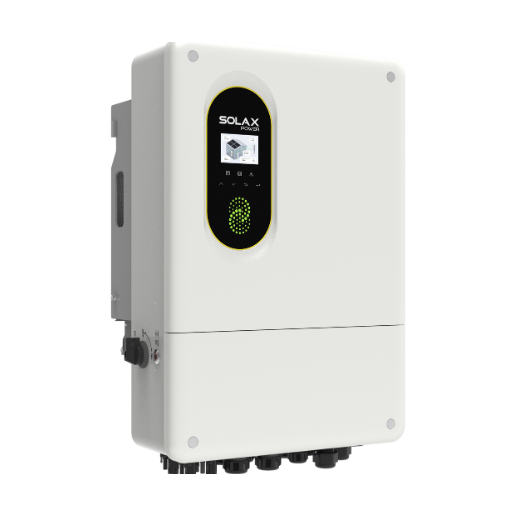

储能逆变器

X3-NEO-LV

5.0kW / 8.0kW / 10.0kW / 12.0kW / 15.0kW / 20.0kW

X3-NEO-LV支持最多3台并机并离网运行。其微电网及发电机兼容特性确保在不同能源环境中无缝集成，同时每路MPPT高达36A的直流输入，完美适配大功率光伏组件。

观看视频
资料下载

产品优势

X3-NEO-LV支持高达200%的光伏超配及110%的交流输出，确保系统高效灵活运行。产品具备IP65防护等级、内置浪涌保护器及可选配AFCI直流拉弧保护，全面保障系统安全。经济性方面，凭借低启动电压设计，可适配大功率光伏组件并延长运行时间。

联系我们

灵活适配

最多支持3台并机并离网
微电网及发电机接入功能*（该功能将通过后续升级开放）

智能管理

全局MPP扫描，实现最优发电效率（该功能将通过后续升级开放）
智能负载管理

高性能表现

支持200%光伏超配及最高110%交流输出
EPS峰值功率达200%（可持续10秒）
最大120A充放电电流
低启动电压，延长系统运行时间

稳定可靠

电池端子温度实时监测
IP65防护等级
交直流侧均配备II型浪涌保护器
可选AFCI直流拉弧保护*（该功能将通过后续升级开放）
EPS输出功率最高达200%（可持续10秒）
单机UPS级切换时间＜3ms

Product Parameters

X3-NEO-5K-LV
X3-NEO-8K-LV
X3-NEO-10K-LV
X3-NEO-12K-LV
X3-NEO-15K-LV
X3-NEO-20K-LV

X3-NEO-5K-LV
- PV INPUT

  Max. recommended PV array power 10 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (1 / 1)
  Max. input current per MPPT 18 A / 18 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 5 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  10 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-8K-LV
- PV INPUT

  Max. recommended PV array power 16 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (1 / 1)
  Max. input current per MPPT 18 A / 18 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 8 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  16 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-10K-LV
- PV INPUT

  Max. recommended PV array power 20 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 1)
  Max. input current per MPPT 36 A / 18 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 10 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  20 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-12K-LV
- PV INPUT

  Max. recommended PV array power 24 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 12 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  24 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-15K-LV
- PV INPUT

  Max. recommended PV array power 30 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 15 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  30 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 44.6 kg
X3-NEO-20K-LV
- PV INPUT

  Max. recommended PV array power 40 kWp
  MPPT voltage range 160 ~ 950 V
  No. of MPP. trackers / strings per MPPT 2 / (2 / 2)
  Max. input current per MPPT 36 A / 36 A
- AC INPUT & OUTPUT (ON-GRID)

  Rated output power 20 kW
  Rated AC voltage
  3W / N / PE, 220 / 380 V
  3W / N / PE, 230 / 400 V
  3W / N / PE, 240 / 415 V
- EPS(OFF-GRID) OUTPUT(WITH BATTERY)

  Peak EPS output power
  40 kVA
  2 times of rated power, 10 s
  Switchover time <3 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W /H / D) 520 × 705 × 258 mm
  Net Weight 45.2 kg
