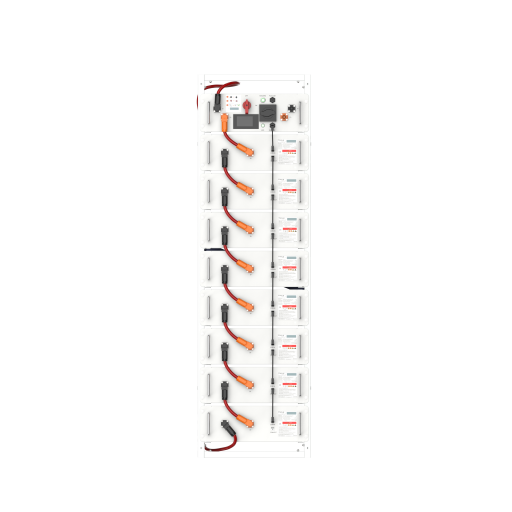

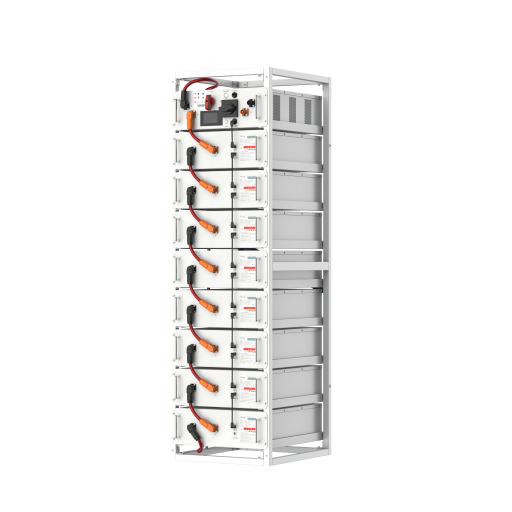

工商业储能电池

TSYS-HR76

7.68 千瓦时 | 磷酸铁锂电池 150 Ah

TSYS-HR76采用高安全性的磷酸铁锂电池，专为可靠高效储能而设计。支持1C持续运行超30分钟，确保高负荷条件下的稳定输出。电池模块支持5至14个灵活组簇配置，可满足不同项目的多样化需求。

资料下载

产品优势

TSYS-HR76 专为灵活适配与可靠运行而设计，工作温度范围覆盖充电0°C至55°C、放电-20°C至55°C。可扩展架构支持每组5至14个模块灵活配置，额定电压范围256.0V至716.8V，额定容量覆盖38.4kWh-215kWh，确保在多样化的工商业储能应用中始终保持卓越性能。

联系我们

高效运行

持续保持1C性能输出
嵌入式安装设计，快速部署
模块化架构，维护便捷高效

智能管理

充放电自动管理
多重安全防护：过充、过放、极端温度保护

稳定可靠

高安全磷酸铁锂电池
超长循环寿命，持久稳定运行

灵活配置

电池组可扩展（每组5-14个模块）
支持远程固件升级
全面兼容艾罗逆变器

Product Parameters

T-HR38.4 / T-HR38.4P
T-HR46.0 / T-HR46.0P
T-HR53.7 / T-HR53.7P
T-HR61.4 / T-HR61.4P
T-HR69.2 / T-HR69.2P
T-HR76.8 / T-HR76.8P
T-HR84.4 / T-HR84.4P
T-HR92.1 / T-HR92.1P
T-HR99.8 / T-HR99.8P
T-HR107.5 / T-HR107.5P

T-HR38.4 / T-HR38.4P
- SYSTEM SPECIFICATION

  Module quantities
  5
  Nominal energy
  38.4 kWh
  Nominal voltage
  256.0 V
  Max. charge / discharge current
  150 A
  Rated power
  23.0 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR46.0 / T-HR46.0P
- SYSTEM SPECIFICATION

  Module quantities
  6
  Nominal energy
  46.0 kWh
  Nominal voltage
  307.2 V
  Max. charge / discharge current
  150 A
  Rated power
  27.6 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR53.7 / T-HR53.7P
- SYSTEM SPECIFICATION

  Module quantities
  7
  Nominal energy
  53.7 kWh
  Nominal voltage
  358.4 V
  Max. charge / discharge current
  150 A
  Rated power
  32.2 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR61.4 / T-HR61.4P
- SYSTEM SPECIFICATION

  Module quantities
  8
  Nominal energy
  61.4 kWh
  Nominal voltage
  409.6 V
  Max. charge / discharge current
  150 A
  Rated power
  36.8 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR69.2 / T-HR69.2P
- SYSTEM SPECIFICATION

  Module quantities
  9
  Nominal energy
  69.1 kWh
  Nominal voltage
  460.8 V
  Max. charge / discharge current
  150 A
  Rated power
  41.4 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR76.8 / T-HR76.8P
- SYSTEM SPECIFICATION

  Module quantities
  10
  Nominal energy
  76.8 kWh
  Nominal voltage
  512.0 V
  Max. charge / discharge current
  150 A
  Rated power
  46.0 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR84.4 / T-HR84.4P
- SYSTEM SPECIFICATION

  Module quantities
  11
  Nominal energy
  84.4 kWh
  Nominal voltage
  563.2 V
  Max. charge / discharge current
  150 A
  Rated power
  50.6 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR92.1 / T-HR92.1P
- SYSTEM SPECIFICATION

  Module quantities
  12
  Nominal energy
  92.1 kWh
  Nominal voltage
  614.4 V
  Max. charge / discharge current
  150 A
  Rated power
  55.2 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR99.8 / T-HR99.8P
- SYSTEM SPECIFICATION

  Module quantities
  13
  Nominal energy
  99.8 kWh
  Nominal voltage
  665.6 V
  Max. charge / discharge current
  150 A
  Rated power
  59.8 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
T-HR107.5 / T-HR107.5P
- SYSTEM SPECIFICATION

  Module quantities
  14
  Nominal energy
  107.5 kWh
  Nominal voltage
  716.8 V
  Max. charge / discharge current
  150 A
  Rated power
  64.5 kW
- BATTERY MODULE

  Battery model
  TB-HR76
  Nominal energy
  7.68 kWh
  Nominal voltage
  51.2 V
  Rated capacity
  150 Ah
  Dimensions (W x H x D)
  450 × 170 × 580 mm
  Weight
  60 kg
- GENERAL

  Operating temperature range
  0 ~ 55°C (charge)
  -20 ~ 55°C (discharge)
  Max.operating altitude
  3000 m
  Environment
  Indoor
