C&I ESS

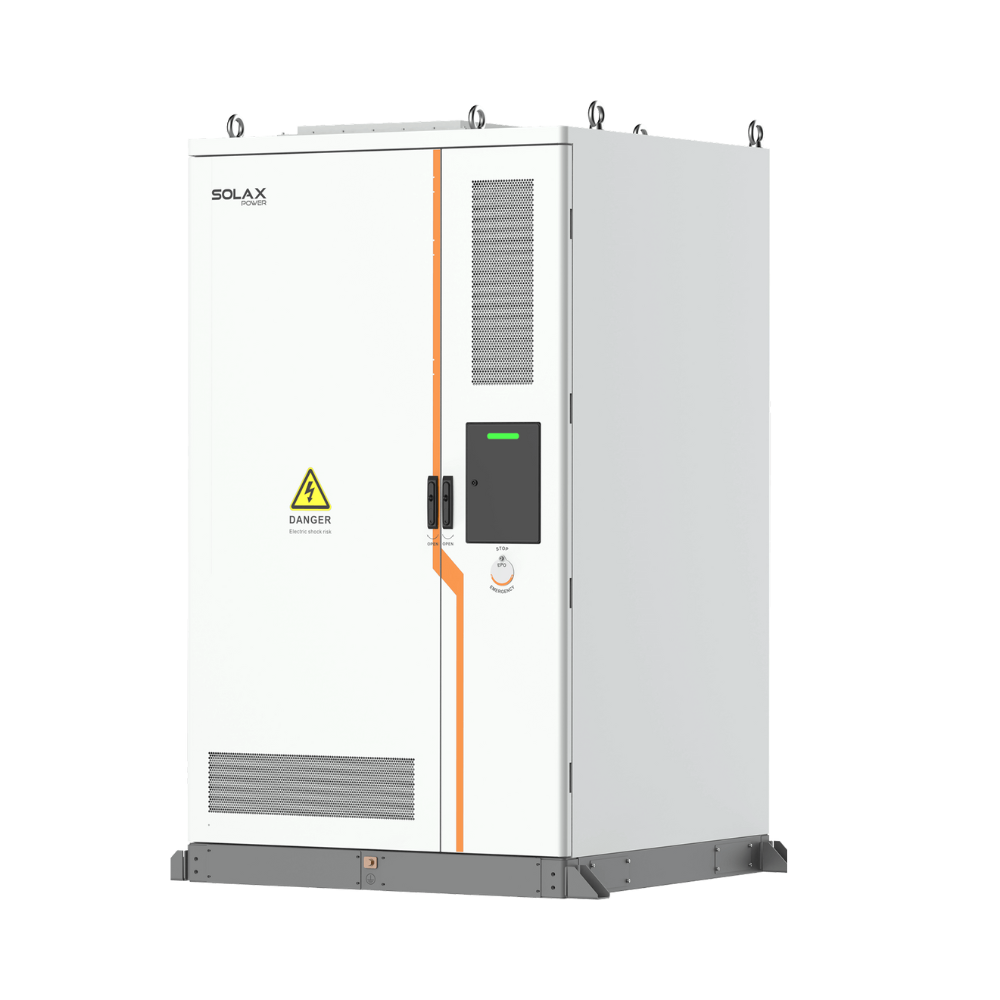

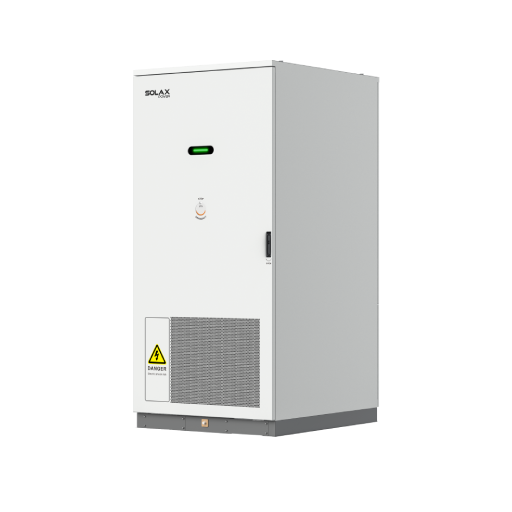

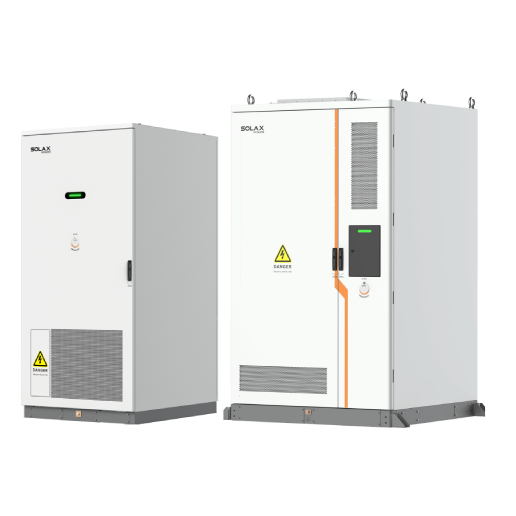

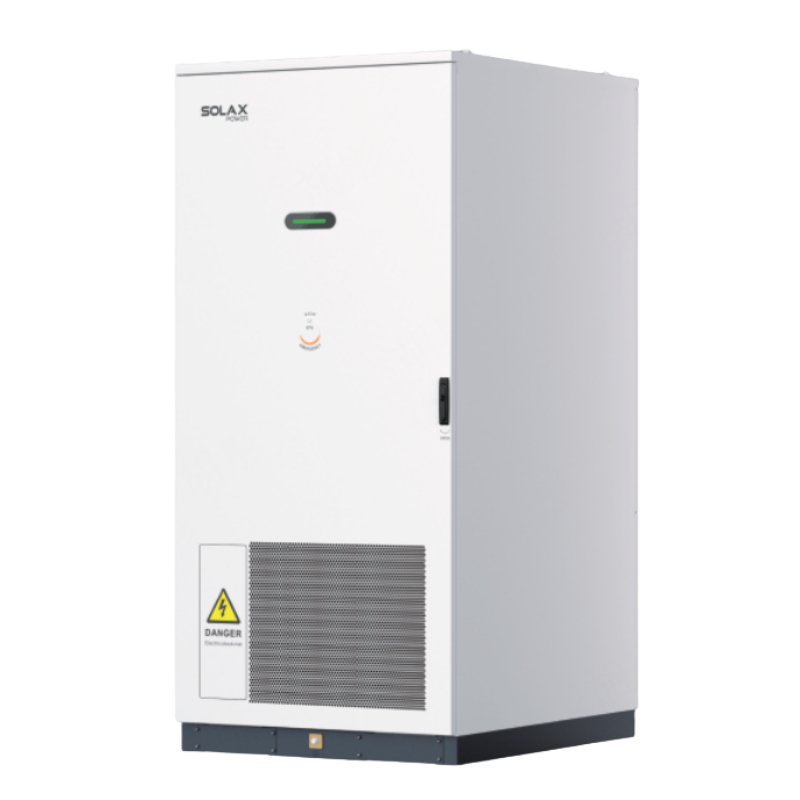

ESS-TRENE 261kWh
-
单舱：99.9kW/125kW | 261kWh 双舱：125kW | 261kWh
ESS-TRENE储能系统提供单舱和双舱两种配置，由SolaX云平台提供支持，确保稳定智能运行，避免多厂商兼容性风险。单舱（99.9kW/125kW | 261kWh）——包括专为亚洲/非洲市场定制的ESS-TRENE-P99-125B261L——采用模块化即插即用设计，实时能量效率（RTE）≥90%，并支持人工智能驱动的无人值守管理。双舱（125kW | 261kWh）配备优质磷酸铁锂电池，可提供兆瓦级可扩展功率，具备强大的IP防护等级，支持虚拟电厂（VPP）并可并网/离网运行。两款型号均采用先进的多级灭火系统、实时电池监控和自适应能量优化技术，确保极致可靠性，从而最大限度地提高投资回报率并降低运营成本。
-
观看视频
产品优势
ESS-TRENE系统完全基于自主研发的全栈式3S技术（BMS、EMS、PCS）构建，消除了多厂商兼容性风险，确保其在整个生命周期内高度稳定运行。卓越的安全性是其首要任务，采用先进的多级防火设计，可及时消除隐患并精准保障资产安全。此外，两种配置均可与SolaXCloud平台无缝集成，实现智能能源管理和全面的远程监控。这种强大的组合支持自适应优化策略，不仅能最大限度地提高用户收益，还能显著降低持续的运营和维护成本。
High Performance
Premium LFP battery with guaranteed quality
High power density, compact design
Scalable up to MWh
Optimised space utilisation
Assured Safety
Real-time monitoring of the entire battery cell, with a 7-day advance warning of thermal runaway
Multilevel fire safety surplus design, timely firefighting, and elimination of explosions
4+1 Fire safety design secures minimal risk and loss
Advanced fault detection and response
Intelligent Design
Equipped with the SolaX AI Cloud platform, adaptive optimization strategies maximize user benefits
Supporting a variety of C＆I energy storage scenarios
Flexible Adaptability
Modular integrated design, factory pre-installation and debugging
Plug and play on-site, convenient connection, simple configuration
Multiple machines installed seamlessly side by side, flexible deployment, and elastic expansion
产品参数
-
TRE261-2A-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
125 kW
Rated AC voltage
3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Nominal voltage
832 d.c. V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1090 × 2360 × 1350 mm
Weight
2450 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRE261-2D-
AC INPUT & OUTPUT (ON-GRID)
Rated output power
99.9 kW
Rated AC voltage
3 / N / PE, 220 / 380 a.c. V
3 / N / PE, 230 / 400 a.c. V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Nominal voltage
832 d.c. V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1090 × 2360 × 1350 mm
Weight
2450 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRENE-P124B261L-E-
AC SIDE (ON-GRID)
Rated AC power
124.9 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Rated battery voltage
832 V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1350 × 2355 × 1350 mm
Weight
2810 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
-
TRENE-P125B261L-E-
AC SIDE (ON-GRID)
Rated AC power
125 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
Rated AC frequency
50 Hz / 60 Hz
-
DC SIDE
Battery type
LFP / 314 Ah
Nominal energy
261 kWh
Rated battery voltage
832 V
-
GENERAL INFORMATION
Dimensions (W×D×H)
1350 × 2355 × 1350 mm
Weight
2810 kg
Operating temperature range
-30 ~ 55°C (＞45℃ derating)
Max. operation altitude
3000 m
Cooling concept
Liquid cooling
Ingress protection
IP55
If there is any change in product size and parameters, please refer to the latest information without prior notice.
-
